Imagine a world where self-driving cars navigate seamlessly, remote surgery is commonplace, and immersive virtual reality experiences are readily available. This isn’t science fiction; it’s the promise of 5G, the next generation of wireless technology. 5G networks aren’t just faster internet; they represent a fundamental shift in how we connect and interact with the digital world. This exploration unveils the intricate architecture, groundbreaking technologies, and transformative applications that define 5G, paving the way for a future brimming with unprecedented possibilities.

From the underlying radio technologies that power blazing-fast speeds and low latency to the sophisticated core network architecture that ensures security and reliability, we’ll delve into the heart of 5G. We will examine the various frequency bands, exploring their strengths and limitations, and discuss how network slicing and edge computing are revolutionizing industries. Prepare to be amazed by the real-world applications already transforming sectors like healthcare, transportation, and manufacturing, and discover the challenges and exciting future trends shaping the 5G landscape.

5G Network Architecture

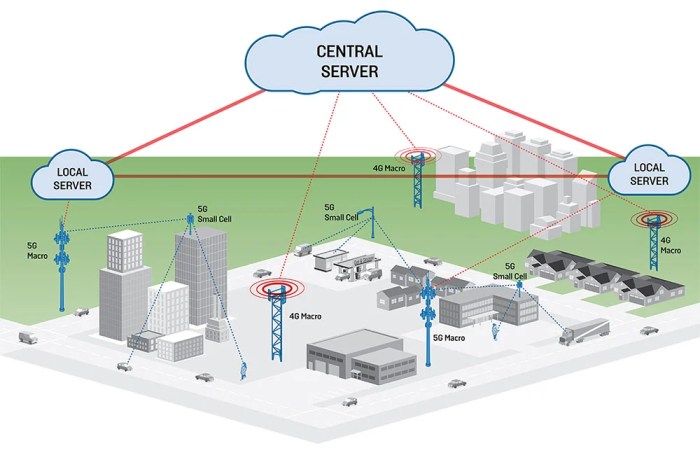

The 5G network architecture represents a significant leap forward in mobile communication technology, offering substantially increased speed, lower latency, and enhanced capacity compared to its predecessors. Understanding its components and functionality is crucial to appreciating the transformative potential of 5G. This section delves into the key elements of this advanced architecture, highlighting its improvements over 4G.

The 5G network is fundamentally different from its 4G counterpart. It’s built upon a more flexible and efficient architecture, leveraging software-defined networking (SDN) and network function virtualization (NFV) to enable greater agility and scalability. This allows for dynamic resource allocation and adaptation to varying network demands, resulting in a more responsive and efficient system.

5G Network Components

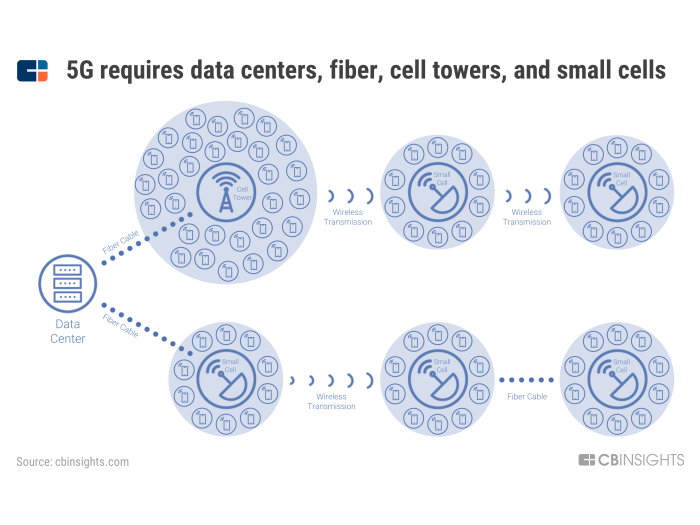

The 5G network architecture can be broadly divided into three main components: the Radio Access Network (RAN), the Core Network, and the User Equipment (UE).

Component	Function	Interconnections
Radio Access Network (RAN)	Responsible for wireless communication between the user equipment and the core network. This includes base stations (gNBs – 5G NodeBs) which handle radio signal transmission and reception, utilizing advanced antenna technologies like Massive MIMO (Multiple-Input and Multiple-Output) for improved signal quality and capacity.	Connects to the core network via fronthaul and midhaul links. Interacts directly with the User Equipment (UE).
Core Network	The central brain of the 5G network, responsible for routing data, managing user sessions, and providing various network services. This includes elements like the Access and Mobility Management Function (AMF), Session Management Function (SMF), and User Plane Function (UPF). These functions are often virtualized and deployed across multiple servers, enhancing scalability and flexibility.	Connects to the RAN via fronthaul and midhaul links. Connects to external networks (e.g., internet) for data access. Interacts with the UE indirectly through the RAN.
User Equipment (UE)	The devices that access the 5G network, such as smartphones, tablets, and IoT devices. These devices contain 5G modems capable of communicating with the gNBs in the RAN.	Communicates directly with the gNB in the RAN.

4G vs. 5G Network Architecture Differences

The differences between 4G and 5G architectures are substantial, going beyond simply faster speeds. 5G introduces significant architectural improvements for enhanced performance and capabilities.

Feature	4G LTE	5G NR
Network Architecture	Relatively simpler, less flexible architecture.	More complex, software-defined and virtualized architecture for improved scalability and flexibility. Utilizes Network Slicing for customized network services.
Radio Access Network (RAN)	eNodeBs (evolved Node Bs)	gNBs (Next Generation Node Bs) with advanced antenna technologies like Massive MIMO and beamforming.
Core Network	Mostly hardware-based, less flexible.	Virtualized and software-defined, allowing for dynamic resource allocation and improved scalability.
Latency	Higher latency (tens to hundreds of milliseconds)	Significantly lower latency (single-digit milliseconds), crucial for real-time applications.
Data Rates	Lower peak data rates	Much higher peak data rates (Gbps), supporting high-bandwidth applications.

Simplified 5G Data Flow Diagram

The following illustrates a simplified representation of data flow within a 5G network. Note that this is a simplified representation, and the actual data flow can be more complex depending on the specific network configuration and services used.

1. User (UE) sends data request.	2. gNB in RAN receives request, forwards to Core Network.	3. Core Network processes request, retrieves data.
(User Device)	(gNB – Base Station)	(Core Network)
4. Core Network sends data back to gNB.	5. gNB transmits data to User (UE).

5G Radio Access Technology

G’s revolutionary speed and capacity improvements stem directly from advancements in its radio access technology (RAT). This isn’t simply an incremental upgrade; it’s a fundamental shift in how we transmit and receive wireless data, leveraging several key technologies to achieve unprecedented performance. Understanding these technologies is crucial to grasping the true potential of 5G.

The core of 5G’s radio access lies in the sophisticated interplay of advanced antenna technologies, efficient modulation schemes, and intelligent spectrum utilization. These work in concert to deliver the promised speeds, low latency, and massive connectivity.

Massive MIMO

Massive MIMO (Multiple-Input and Multiple-Output) represents a significant leap forward in antenna technology. Instead of using a few antennas, Massive MIMO employs a large array – sometimes dozens or even hundreds – of antennas both at the base station and, increasingly, at user devices. This allows for the simultaneous transmission of data to multiple users, significantly increasing network capacity and spectral efficiency.

Imagine it as a highly focused spotlight, directing data precisely to each user, minimizing interference and maximizing signal strength. The effect is akin to having multiple smaller, independent cellular towers operating from a single physical location. This technology is instrumental in handling the massive number of connected devices expected on 5G networks.

Beamforming

Beamforming is a signal processing technique that enhances the signal strength and reduces interference by focusing the radio waves into narrow beams directed towards specific users. This targeted transmission maximizes the signal-to-noise ratio, resulting in faster data speeds and improved reliability. Think of it as a highly directional loudspeaker, concentrating the sound towards the intended listener while minimizing the sound reaching others.

Beamforming, often employed in conjunction with Massive MIMO, dynamically adjusts the beam direction based on user location and channel conditions, ensuring optimal performance.

Orthogonal Frequency-Division Multiplexing (OFDM)

OFDM is a digital modulation scheme that divides a high-bandwidth signal into many narrow sub-carriers, each carrying a portion of the data. This technique is highly robust against multipath fading, a common problem in wireless communication where signals bounce off various objects, leading to distortion and interference. By transmitting data across multiple sub-carriers, OFDM can mitigate the effects of fading and ensure reliable data transmission, even in challenging environments.

OFDM is the foundation of many modern wireless communication systems, including 4G LTE and Wi-Fi, and its use in 5G further refines its performance to handle the higher data rates and denser deployments.

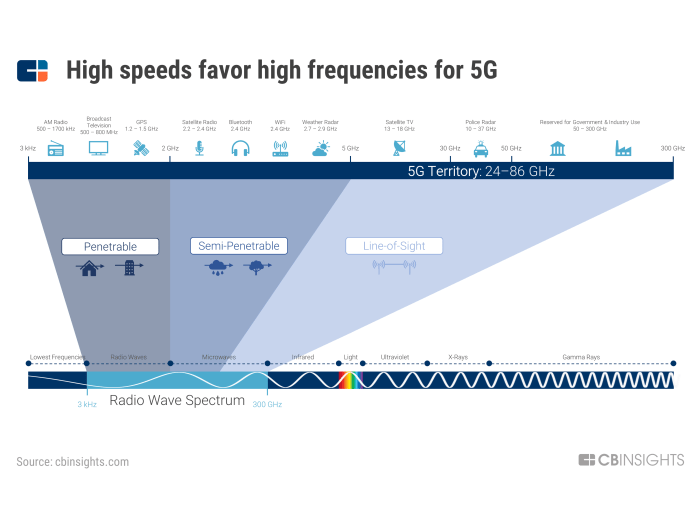

5G Frequency Bands: A Comparison

The choice of frequency band significantly impacts the performance characteristics of a 5G network. Different bands offer different trade-offs between coverage, capacity, and data speed.

Frequency Band	Advantages	Disadvantages	Use Cases
Low-band (sub-6 GHz)	Wide coverage area, good penetration through obstacles	Lower data speeds compared to mid-band and high-band	Broad coverage for general use, IoT devices, rural areas
Mid-band (6 GHz – 10 GHz)	Good balance between coverage and capacity, higher data speeds than low-band	Coverage less extensive than low-band	Urban areas, high-density deployments, improved capacity for existing cellular infrastructure
High-band (above 24 GHz)	Extremely high data speeds, massive capacity	Very limited coverage, easily blocked by obstacles	Dense urban areas, high-bandwidth applications like augmented reality and virtual reality

Spectrum Sharing and Aggregation

Efficient spectrum utilization is paramount in the crowded radio frequency landscape. Spectrum sharing allows different wireless systems to coexist and share the same frequency bands, maximizing resource utilization. This is achieved through sophisticated techniques that minimize interference and ensure fair access. For example, 5G networks can share spectrum with existing 4G LTE networks, increasing overall network capacity without requiring additional spectrum allocation.

Spectrum aggregation combines multiple frequency bands to provide wider bandwidth and higher data rates. By aggregating low-band, mid-band, and high-band spectrum, 5G networks can offer a seamless blend of wide coverage and high speeds. This is particularly important in dynamic environments where users might move between areas with varying signal strengths and available spectrum. For instance, a user moving from a rural area to a densely populated city can experience a smooth transition in data speeds as the network dynamically aggregates different frequency bands to optimize performance.

5G Core Network Functionality

The 5G core network is the brains of the operation, a sophisticated system responsible for managing user data, connecting devices, and ensuring seamless communication in the 5G ecosystem. Unlike its 4G predecessors, the 5G core is built on a service-based architecture (SBA), offering unprecedented flexibility and scalability. This allows for dynamic resource allocation and the creation of customized network slices tailored to specific applications.

Let’s delve into the key functionalities that make this possible.

The 5G core network’s architecture is designed for agility and efficiency. Its modularity allows for rapid deployment of new services and the adaptation to evolving user needs. This is achieved through a combination of network functions virtualized (NFV) and containerized, running on cloud-based infrastructure. This approach enables efficient resource utilization and improved scalability compared to traditional hardware-based networks.

Network Slicing

Network slicing allows the 5G core to dynamically partition network resources to create dedicated virtual networks tailored to specific applications. Imagine a slice optimized for ultra-low latency applications like autonomous vehicles, another for high-bandwidth applications like video streaming, and yet another for massive machine-type communication (mMTC) in IoT deployments. Each slice is isolated and optimized for its unique requirements, guaranteeing quality of service (QoS) without interfering with others.

This flexibility allows operators to offer customized services to diverse user groups, unlocking new revenue streams and catering to the demands of a highly heterogeneous network environment. For example, a dedicated slice for emergency services ensures priority access to network resources, guaranteeing reliable communication during critical situations.

Edge Computing

Edge computing brings computation and data storage closer to the user, reducing latency and improving responsiveness. In the 5G core network, edge computing capabilities are integrated to process data closer to the source, enabling real-time applications that require immediate responses. This is particularly crucial for applications such as augmented reality (AR), virtual reality (VR), and autonomous driving, where milliseconds of delay can make a significant difference.

By processing data at the edge, the 5G core reduces the burden on the core network and enhances overall performance. For instance, processing video analytics for security cameras at the edge reduces the amount of data needing to be transmitted to the core network, saving bandwidth and improving response times for alerts.

Service-Based Architecture (SBA)

The 5G core network employs a service-based architecture, enabling greater flexibility and scalability. NFs are exposed as services via well-defined interfaces, allowing for easier integration and management. This modular design facilitates the addition of new functionalities and the customization of services to meet evolving demands. The SBA enables network operators to quickly deploy new services and features, adapt to changing market conditions, and improve overall network efficiency.

The use of standard interfaces promotes interoperability and reduces vendor lock-in. This promotes competition and innovation within the 5G ecosystem.

5G Core Network Security Mechanisms

Robust security is paramount in the 5G core network to protect user data and ensure network integrity. Multiple layers of security are implemented, including encryption, authentication, and authorization mechanisms. These mechanisms safeguard user data from unauthorized access and prevent malicious attacks. Examples include the use of end-to-end encryption to protect user communication, strong authentication protocols to verify user identities, and access control mechanisms to restrict access to sensitive network resources.

Furthermore, the network architecture itself incorporates security features to detect and mitigate threats. Continuous monitoring and threat detection systems are employed to identify and respond to potential security breaches proactively.

Establishing a 5G UE Connection to the Core Network

The process of establishing a connection between a 5G User Equipment (UE) and the core network involves several key steps:

The connection process is a carefully orchestrated sequence of actions ensuring secure and reliable communication between the user device and the core network. The speed and efficiency of this process directly impact the user experience, highlighting the importance of optimized network design and robust protocols.

Initial Access: The UE searches for and selects a suitable 5G gNB (gNodeB).
RRC Connection Establishment: The UE establishes a Radio Resource Control (RRC) connection with the gNB, initiating the process of authentication and security key exchange.
Authentication and Security: The UE and the network authenticate each other using security protocols such as 5G Authentication and Key Agreement (5G AKA). A security context is established, encrypting subsequent communication.
Paging and Registration: The gNB pages the UE and the UE registers with the AMF (Access and Mobility Management Function) in the 5G core network.
Session Management: The AMF establishes a session with the SMF (Session Management Function) to manage the data connection.
Data Plane Connection: The SMF establishes a data path between the UE and the destination network or application via the UPF (User Plane Function).
Data Transfer: Once the connection is established, data can be transferred between the UE and the destination.

5G Applications and Use Cases

The transformative potential of 5G extends far beyond faster mobile internet. Its ultra-low latency, high bandwidth, and massive connectivity capabilities are unlocking unprecedented opportunities across numerous sectors, revolutionizing how we live, work, and interact with the world around us. This section explores some key applications and use cases that are already shaping the future, and many more that are on the horizon.

5G’s impact is felt across a broad spectrum of industries, significantly improving efficiency, creating new possibilities, and driving economic growth. This is achieved through enhanced mobile broadband, the burgeoning Internet of Things (IoT), and the automation of industrial processes, among other applications.

Enhanced Mobile Broadband

Enhanced Mobile Broadband (eMBB) represents the most immediate and widely recognized application of 5G. It delivers significantly faster download and upload speeds compared to previous generations, enabling seamless streaming of high-definition video, lightning-fast downloads, and lag-free online gaming. This improved speed and capacity are not merely incremental improvements; they are fundamentally changing how we consume mobile data. For example, the ability to download a high-resolution movie in seconds, rather than minutes, is transforming the mobile entertainment landscape.

Furthermore, eMBB fuels the growth of cloud-based services and applications, making them readily accessible even in areas with limited infrastructure.

Internet of Things (IoT)

G’s massive connectivity capabilities are the cornerstone of the Internet of Things (IoT) revolution. The ability to connect billions of devices, from smart sensors to autonomous vehicles, requires a network infrastructure that can handle the sheer volume and complexity of data transfer. 5G’s low latency and high reliability are crucial for real-time applications like remote monitoring, smart city infrastructure, and precision agriculture.

Consider the example of smart farming: sensors embedded in soil can monitor moisture levels and nutrient content, sending data to a central system that optimizes irrigation and fertilizer application, leading to increased crop yields and reduced resource consumption. This is just one illustration of how 5G is enabling the seamless integration of smart devices, improving efficiency, and creating new opportunities across various sectors.

Industrial Automation

The low latency and high reliability offered by 5G are proving invaluable in industrial automation. Applications such as robotic process automation, predictive maintenance, and remote control of machinery are significantly enhanced by the speed and responsiveness of 5G. For example, in manufacturing plants, 5G-enabled robots can collaborate with human workers more effectively, performing complex tasks with greater precision and speed.

Furthermore, predictive maintenance systems can analyze data from connected machinery to anticipate potential failures, minimizing downtime and preventing costly repairs. This enhanced efficiency translates to significant cost savings and improved productivity for manufacturers. The use of augmented reality (AR) headsets, enabled by 5G’s low latency, allows technicians to receive real-time guidance and support from remote experts, further optimizing maintenance and repair processes.

5G in Healthcare

G is revolutionizing healthcare through applications like remote surgery, telemedicine, and the deployment of wearable health monitors. The low latency of 5G allows for real-time data transmission during remote surgeries, enabling surgeons to control robotic arms with greater precision and responsiveness. Telemedicine is also significantly enhanced, allowing for high-quality video consultations between patients and doctors, regardless of geographical location. The improved connectivity also supports the deployment of a vast network of wearable health monitors, providing continuous monitoring of vital signs and early detection of potential health issues.

This proactive approach to healthcare improves patient outcomes and reduces healthcare costs. For instance, remote patient monitoring of heart conditions allows for immediate intervention if irregularities are detected, potentially saving lives.

5G in Transportation

The automotive industry is undergoing a significant transformation driven by 5G. Autonomous vehicles, advanced driver-assistance systems (ADAS), and intelligent transportation systems (ITS) all rely heavily on the low latency, high bandwidth, and reliable connectivity offered by 5G. Autonomous vehicles require real-time data exchange to navigate safely and efficiently. 5G enables this communication, allowing vehicles to share information with each other and with infrastructure, such as traffic lights and road signs.

This improves traffic flow, reduces congestion, and enhances safety. ADAS features, such as adaptive cruise control and lane keeping assist, also benefit from the improved connectivity, providing drivers with enhanced safety features. Furthermore, 5G facilitates the development of intelligent transportation systems, which optimize traffic management and improve overall transportation efficiency.

Challenges and Future Trends in 5G

The rollout of 5G, while promising unprecedented speeds and connectivity, is not without its hurdles. Simultaneously, the technological landscape is rapidly evolving, paving the way for exciting advancements that will shape the future of 5G and beyond. Understanding both the challenges and the potential future trends is crucial for navigating the complexities of this transformative technology and ensuring its successful and impactful implementation.

This section will explore these critical aspects, providing insights into the factors that will determine the trajectory of 5G’s development.

Spectrum Availability and Allocation

Securing sufficient radio spectrum is paramount for 5G deployment. The higher frequencies used by 5G, such as millimeter wave (mmWave), offer greater bandwidth but suffer from limited range and penetration. This necessitates a denser network of base stations, increasing infrastructure costs and potentially creating deployment challenges in certain environments. Furthermore, the allocation of spectrum varies across different countries and regions, leading to regulatory complexities and potential inconsistencies in 5G coverage and performance.

Efficient spectrum sharing mechanisms and innovative spectrum management strategies are essential to overcome these hurdles and unlock the full potential of 5G. For example, the shared use of spectrum between different operators through dynamic spectrum allocation is a key solution being actively explored.

Infrastructure Costs and Deployment Challenges

Building a 5G network requires substantial investment in new infrastructure, including base stations, core network equipment, and backhaul networks. The cost of deploying mmWave technology, in particular, is significantly higher compared to traditional cellular technologies due to the need for denser deployments and specialized equipment. This can pose a significant barrier to entry for smaller operators and in less densely populated areas.

Furthermore, geographical limitations, such as challenging terrain or regulatory hurdles related to site acquisition and permitting, can further complicate and delay deployments. Innovative financing models and streamlined regulatory processes are needed to alleviate these challenges. For instance, public-private partnerships and government subsidies can help reduce the financial burden on network operators.

Regulatory Hurdles and Standardization

Navigating the regulatory landscape is another major challenge for 5G deployment. Different countries have varying regulations concerning spectrum allocation, network security, and data privacy. This fragmented regulatory environment can create significant hurdles for operators seeking to deploy 5G networks across multiple regions. Furthermore, ensuring interoperability and standardization across different 5G technologies and vendors is crucial for seamless network operation and efficient resource utilization.

International collaboration and harmonized regulatory frameworks are essential to overcome these challenges and foster a globally consistent 5G ecosystem. The 3GPP (3rd Generation Partnership Project) plays a vital role in establishing global standards for 5G, facilitating interoperability and reducing fragmentation.

Future Trends: The Evolution Towards 6G

Research and development efforts are already underway for 6G, aiming to surpass the capabilities of 5G in terms of speed, latency, and capacity. 6G is envisioned to leverage even higher frequencies, potentially incorporating terahertz (THz) bands, and advanced technologies such as holographic communications and integrated sensing and communication (ISAC). This will enable new applications and use cases, such as ultra-reliable low-latency communication (URLLC) for autonomous vehicles and high-precision remote surgery.

The transition from 5G to 6G will be gradual, with 6G likely complementing and eventually replacing 5G over time. The development of 6G will necessitate further advancements in areas such as antenna technology, signal processing, and network architecture.

Network Virtualization and AI Integration

Network virtualization is becoming increasingly important for improving the flexibility, scalability, and efficiency of 5G networks. By decoupling software from hardware, virtualization allows for greater agility in deploying and managing network resources. This also enables the deployment of network functions as virtual network functions (VNFs) in cloud environments, leading to cost savings and improved resource utilization. The integration of artificial intelligence (AI) and machine learning (ML) is another key trend in 5G.

AI can be used for various purposes, including network optimization, predictive maintenance, and fraud detection. For example, AI algorithms can optimize network resource allocation based on real-time traffic patterns, leading to improved network performance and reduced energy consumption. The application of AI in 5G network management is expected to significantly improve network efficiency and resilience.

Illustrative Example: 5G Network Slice for Autonomous Vehicles

Autonomous vehicles (AVs) represent a transformative technology poised to revolutionize transportation. However, their safe and reliable operation hinges critically on the availability of a robust and responsive communication infrastructure. This necessitates a dedicated 5G network slice tailored to the unique requirements of AVs, ensuring seamless data transmission and minimal latency.

A 5G network slice for autonomous vehicles must be meticulously designed to meet stringent performance and security demands. This involves careful consideration of network parameters, communication protocols, and data processing mechanisms, all working in concert to provide the necessary level of reliability and safety.

Network Slice Requirements

The success of a 5G network slice for AVs depends on meeting several critical requirements. These requirements encompass various aspects, from ensuring low latency communication to implementing robust security measures. The design must prioritize safety above all else.

Latency: Ultra-low latency is paramount. The target should be under 1 millisecond (ms) end-to-end for critical control signals. This minimizes the delay between sensor data acquisition, processing, and actuation, preventing potential accidents.

Bandwidth: High bandwidth is essential to handle the massive data streams generated by multiple sensors (LiDAR, radar, cameras) and the high-resolution maps required for navigation. A minimum of 1 Gigabit per second (Gbps) per vehicle is a reasonable starting point, potentially scaling higher depending on the number of sensors and data processing demands.

Security: Robust security mechanisms are crucial to prevent unauthorized access and manipulation of AV control systems. This includes encryption of all communication channels, secure authentication protocols, and intrusion detection systems to mitigate cyberattacks. The slice should employ end-to-end encryption, including the use of technologies like TLS 1.3 or its successor, and strong authentication methods.

Network Slice Functionalities

The 5G network slice for AVs will incorporate several key functionalities to ensure reliable and safe operation. These functionalities work together to create a comprehensive system that supports the complex communication needs of autonomous vehicles.

The network slice will utilize highly reliable low latency communication (URLLC) capabilities of 5G, employing protocols like 5G NR (New Radio) and optimized routing strategies to minimize latency. Data processing will be distributed across edge servers and cloud platforms, allowing for real-time processing of sensor data and rapid decision-making. Vehicle-to-everything (V2X) communication will be integrated, enabling seamless interaction with other vehicles, infrastructure, and pedestrians.

The system will leverage precise positioning technologies, such as GPS augmented with cellular-based positioning, to provide accurate location information.

Safety and Reliability Mechanisms

Ensuring the safety and reliability of autonomous vehicle operations within this 5G network slice requires a multi-layered approach. Redundancy and fail-safe mechanisms are crucial to mitigate potential risks. The system design must consider potential points of failure and implement mechanisms to ensure continuous operation even in the event of partial system failure.

Redundancy: Multiple communication paths and backup systems will be implemented to ensure continuous connectivity even if one path fails. This includes utilizing multiple base stations and employing diverse communication technologies.

Fail-safe mechanisms: The system will incorporate fail-safe mechanisms to prevent accidents in case of communication failures. This could include automatic emergency braking, slowing down or pulling over to a safe location, and alerting emergency services.

Data validation: Data integrity checks and validation mechanisms will be employed to detect and mitigate errors in sensor data and communication signals. This will involve using checksums and other error detection techniques to ensure the accuracy of the data being used for control decisions.

The journey into the world of 5G networks reveals a technology far more profound than simply faster internet. It’s a transformative force reshaping industries, enhancing experiences, and creating a more connected future. While challenges remain in deployment and adoption, the potential benefits are immense. As we move forward, the ongoing evolution of 5G, fueled by innovation in areas like AI and network virtualization, promises even more remarkable advancements.

The future powered by 5G is not just faster; it’s smarter, safer, and more connected than ever before, unlocking opportunities previously unimaginable.

Questions Often Asked

What is the difference between 5G and Wi-Fi?

5G is a cellular network technology designed for wide-area coverage, while Wi-Fi is a local area network technology. 5G offers greater speed and capacity for mobile users, whereas Wi-Fi is typically used for fixed locations.

How much faster is 5G than 4G?

Theoretically, 5G can be up to 100 times faster than 4G, but real-world speeds vary greatly depending on factors like network congestion and frequency band used. Expect significant improvements, but not always the theoretical maximum.

Is 5G safe?

Extensive research indicates that 5G radio waves operate at levels well below those known to be harmful to human health. Regulatory bodies worldwide set strict limits on radio frequency emissions to ensure safety.

What are the main limitations of 5G?

Key limitations include the cost of infrastructure deployment, the availability of suitable spectrum, and the potential for signal blockage in certain environments. Additionally, achieving consistent high speeds across all areas requires ongoing network optimization.
